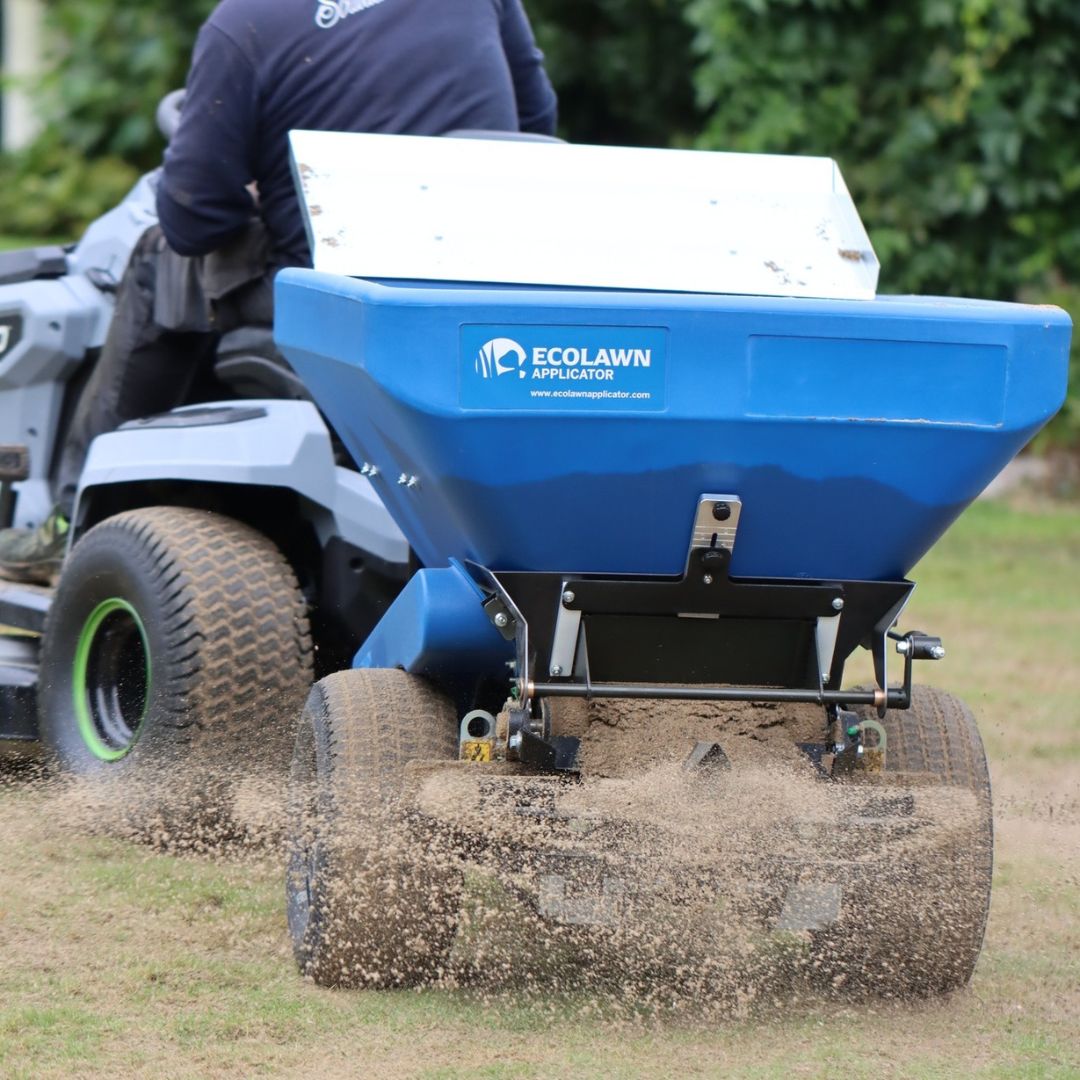

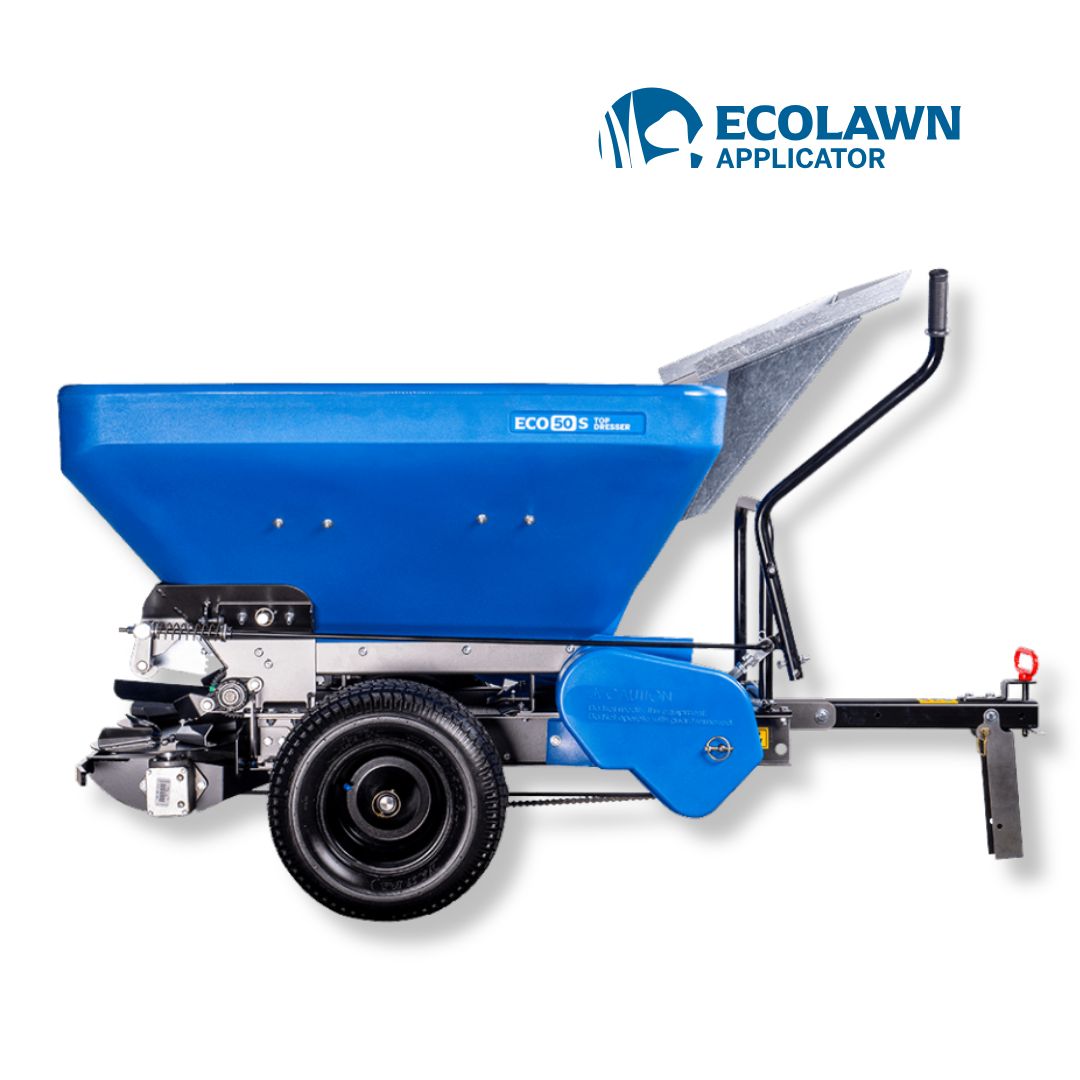

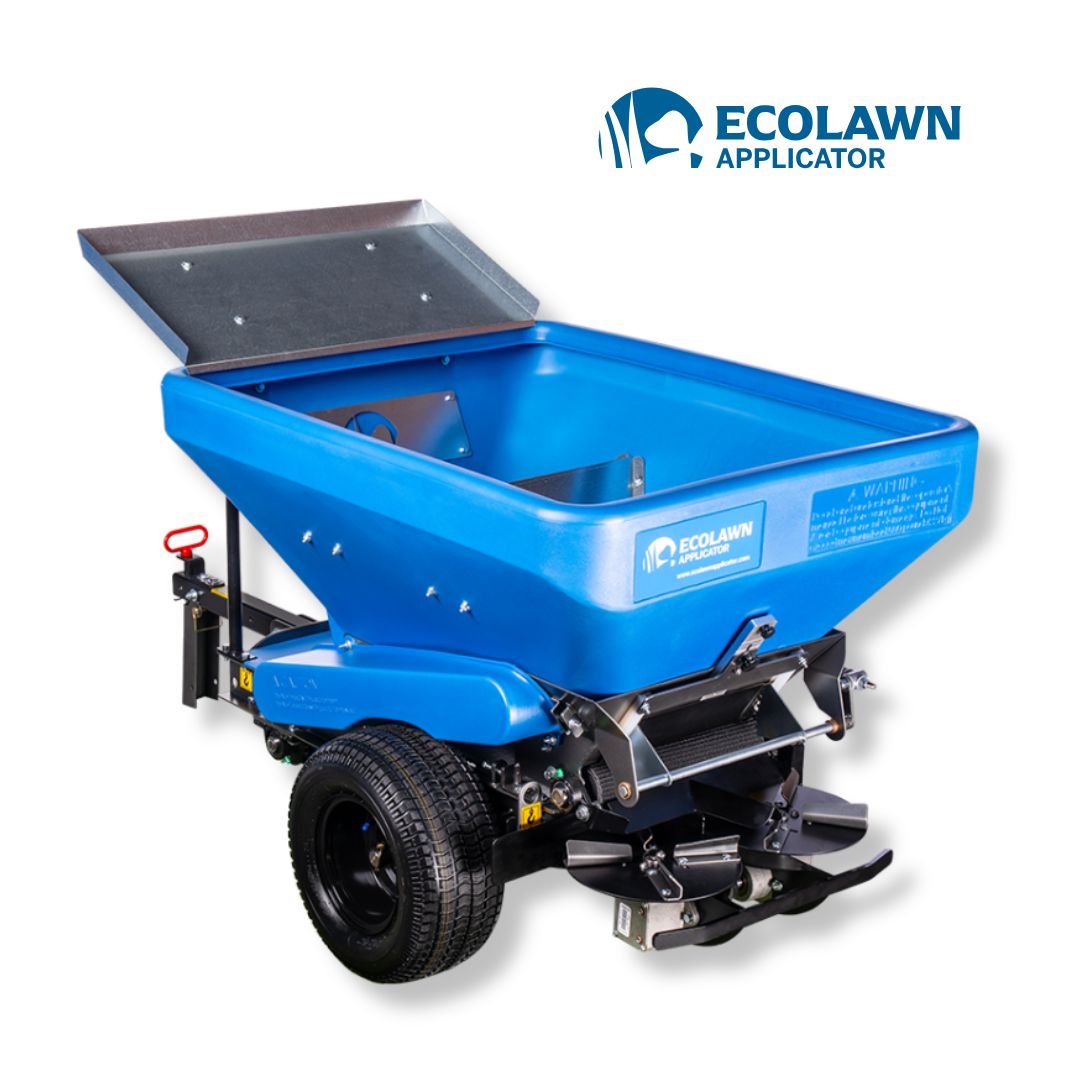

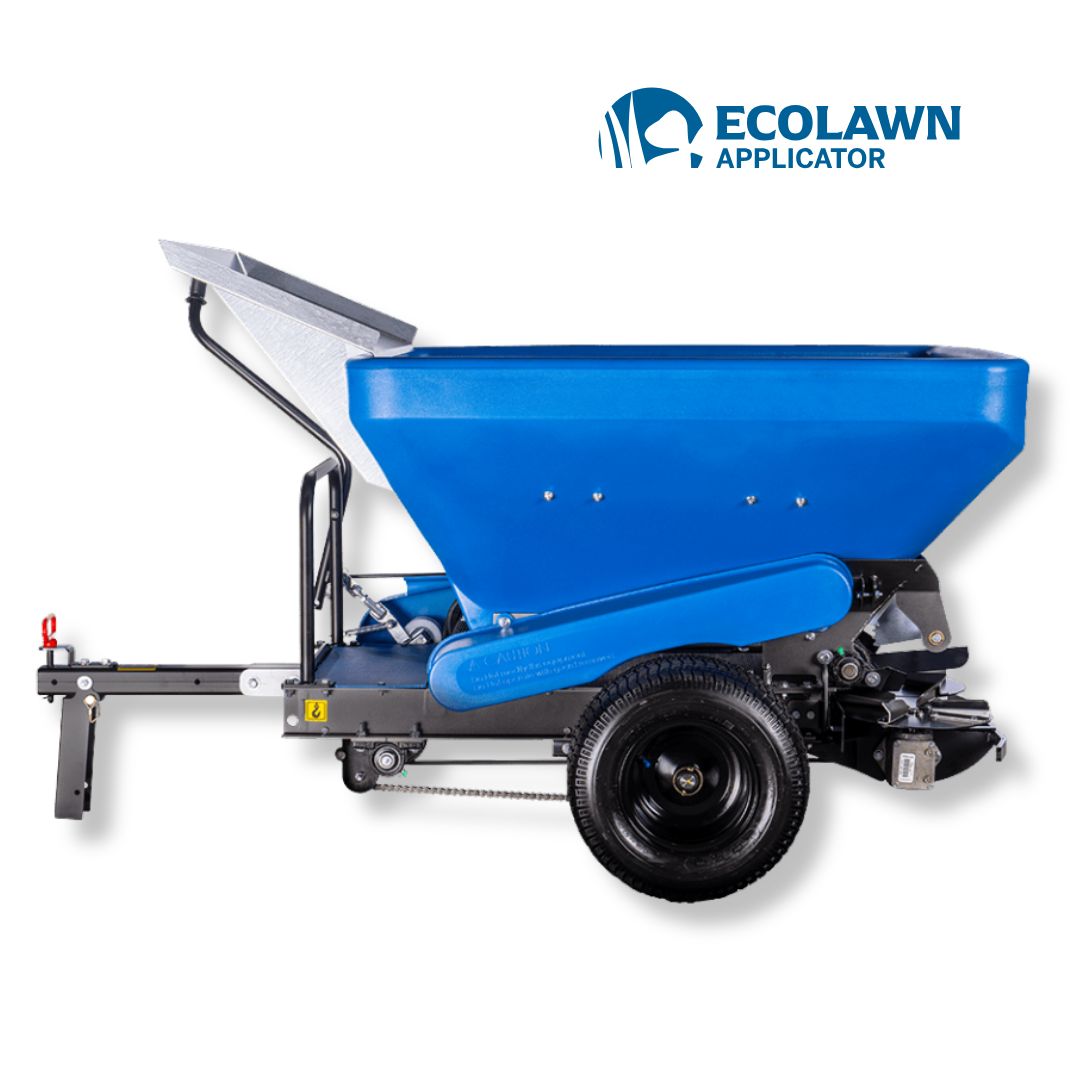

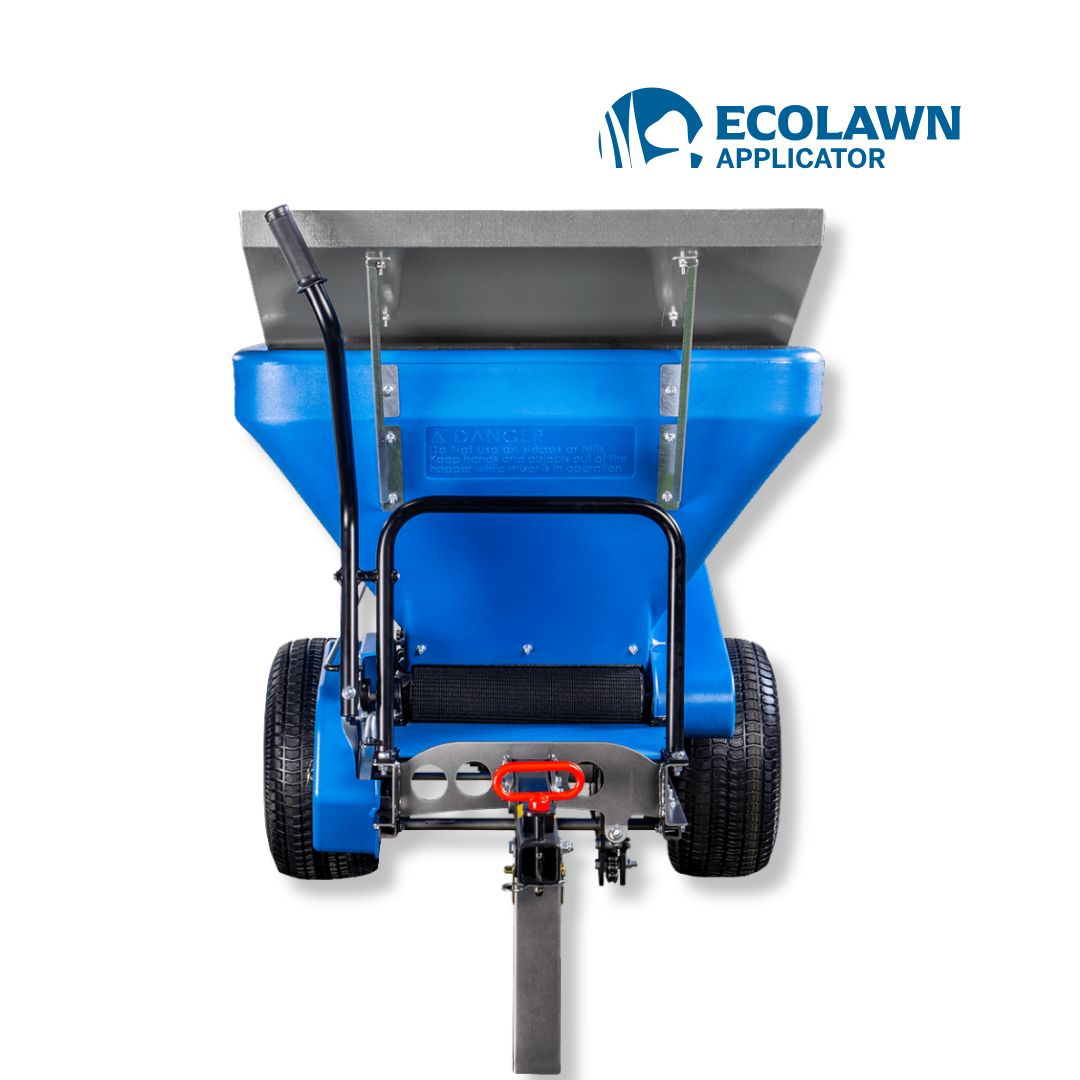

EcoLawn Applicator ECO50-S Tow-Behind Top Dresser/ Spreader

EcoLawn Applicator ECO50-S Tow-Behind Top Dresser/ Spreader

Regular price $9,500.00 AUD
Regular price Sale price $9,500.00 AUD
Sale Sold out

New & Improved Design

The ECO50-S is a high-capacity, tow-behind top dresser and compost spreader that delivers wider coverage and greater precision while keeping the same simple, low-maintenance design as the ECO50. Dual spinners create a broad, even spread pattern for large turf areas, and the adjustable gate ensures precise flow control.

Perfect for all sand grades, screened compost, and a wide range of lawn care and turf-care materials. Designed to tow behind ride-on mowers like Walker Mowers, it also connects easily to ATVs, tractors, and utility vehicles. A reliable choice for anyone seeking professional-grade top dressing results with minimal upkeep.

Shipping: Due to size/weight, this item requires a custom shipping quote. Please complete the order and we will contact you, or email/call us before purchasing.

Features:

  • Dual spinners create a broad, even spread pattern for large turf areas.
  • Adjustable gate to ensure precise flow control.
  • Connects easily to ATVs, tractors, and utility vehicles.

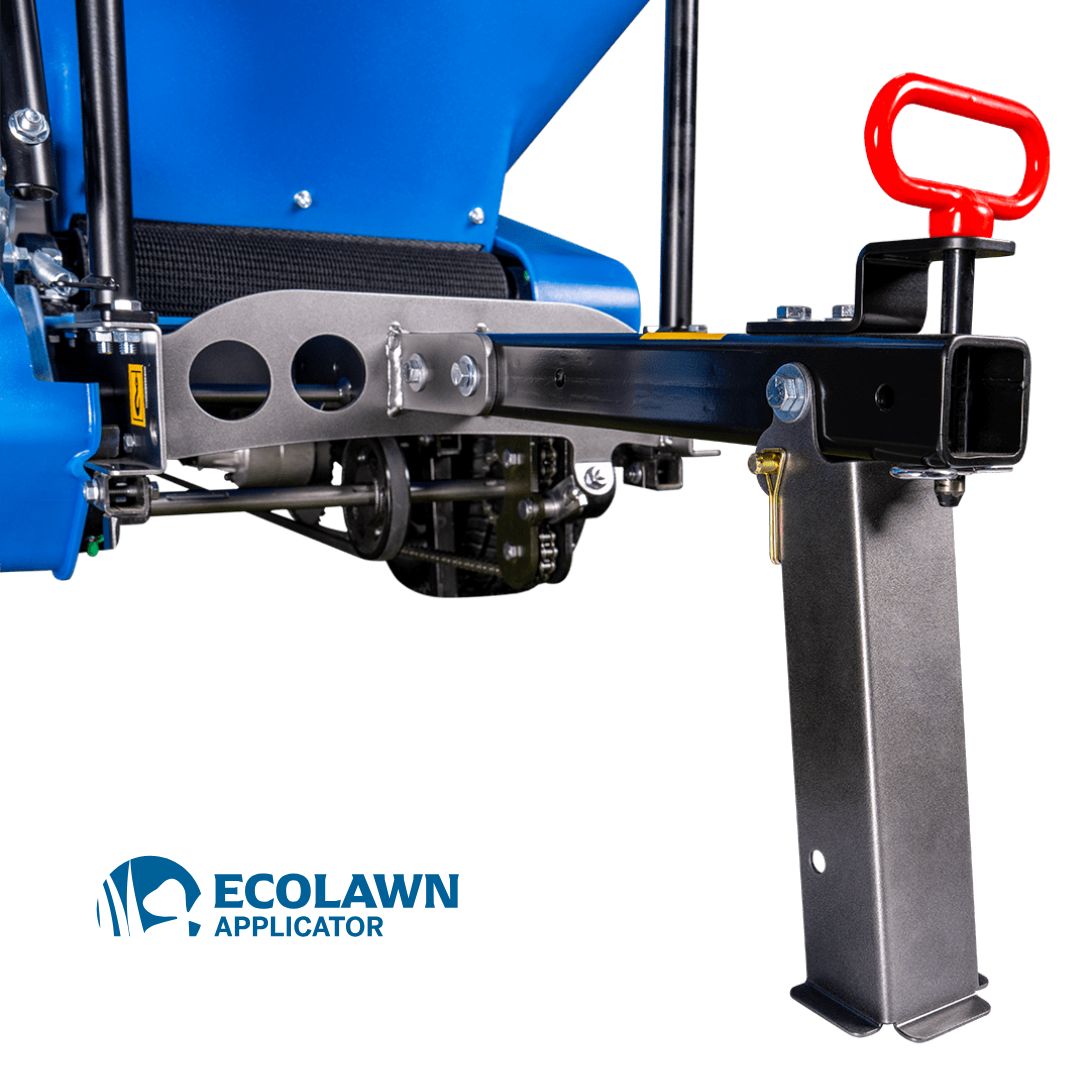

  • Retractable leg for easy storage.
  • A wide base frame improves stability and accommodates a wide conveyor system for increased surface contact.
  • An extra differential support bracket has been added in order to handle greater weight.
  • A convenient, single lever engages the conveyor/agitator system and also opens the trap flap for spreading.
  • All levers and handles have been re-positioned for ease of use and comfort.
  • Four tie-down points have been integrated into the new design.
  • A quick adjustment agitator belt tensioner system makes it easy to adapt on the go.
  • The larger frame gives the hopper a wider live bottom. This feature works together sides and large rounded corners and edges to eliminate product bridging.

Specifications:

Application Width 4 to 18 ft (1.22 to 5.49 M)
Materials Suitable for all grades of sand, calcined clay, crumb rubber, light soil mixes, lime, most pelletized products, pulverised soils, screened compost, screened loam, and unlimited custom blends
Hopper Capacity 11.5 ft3 (326 L)
Weight Distribution Design Two-wheel design
Broadcasting drive & Mechanism Gearbox-driven system with dual disks / spinners
Application Thickness Up to 1/4 in. (6.35 mm)
Ground speed Up to 5 mph (8 km/h)
Gate On/off gate system
Included • Gate stopper
• Retractable leg for storage
• Four tie-down points
• Additional weight deflector
Conveyor Belt Rough top
Application Speed 9 ft3/min – 540 ft3/h
(0.26 M³/min – 15.29 M³/h)
Empty Weight 270 lbs (122.47 kg)
Dimension (L/W/H) 78 x 34 x 40 in.
(1981 × 864 × 1016 mm)
Warranty One (1) year commercial use on parts and labor

Dimensions

480mm h x 50mm w
